Garage Floor Plan
A single garage with a workbench and storage — around 26 m², sized for one car plus a workshop corner.
A single-car garage that also works as a workshop or extension shell: a 2.4 m sliding gate, a separate side entrance, gable windows for daylight, and a workbench and storage inside.
The Layout
The sliding gate is offset to one side of the front wall so the side door and its walking path stay clear of the parked car. Windows sit in both gable walls for cross light, leaving the long back wall blind — free for shelving. The workbench runs into the corner by the east window; a storage cabinet takes the opposite corner. At 6.9 × 4.5 m outside, there is a comfortable working margin around a standard 2.5 × 5 m parking space.
Room Schedule
| Garage | 25.6 m² |
| Net area | ~26 m² |
| Outer envelope | 6.9 × 4.5 m |

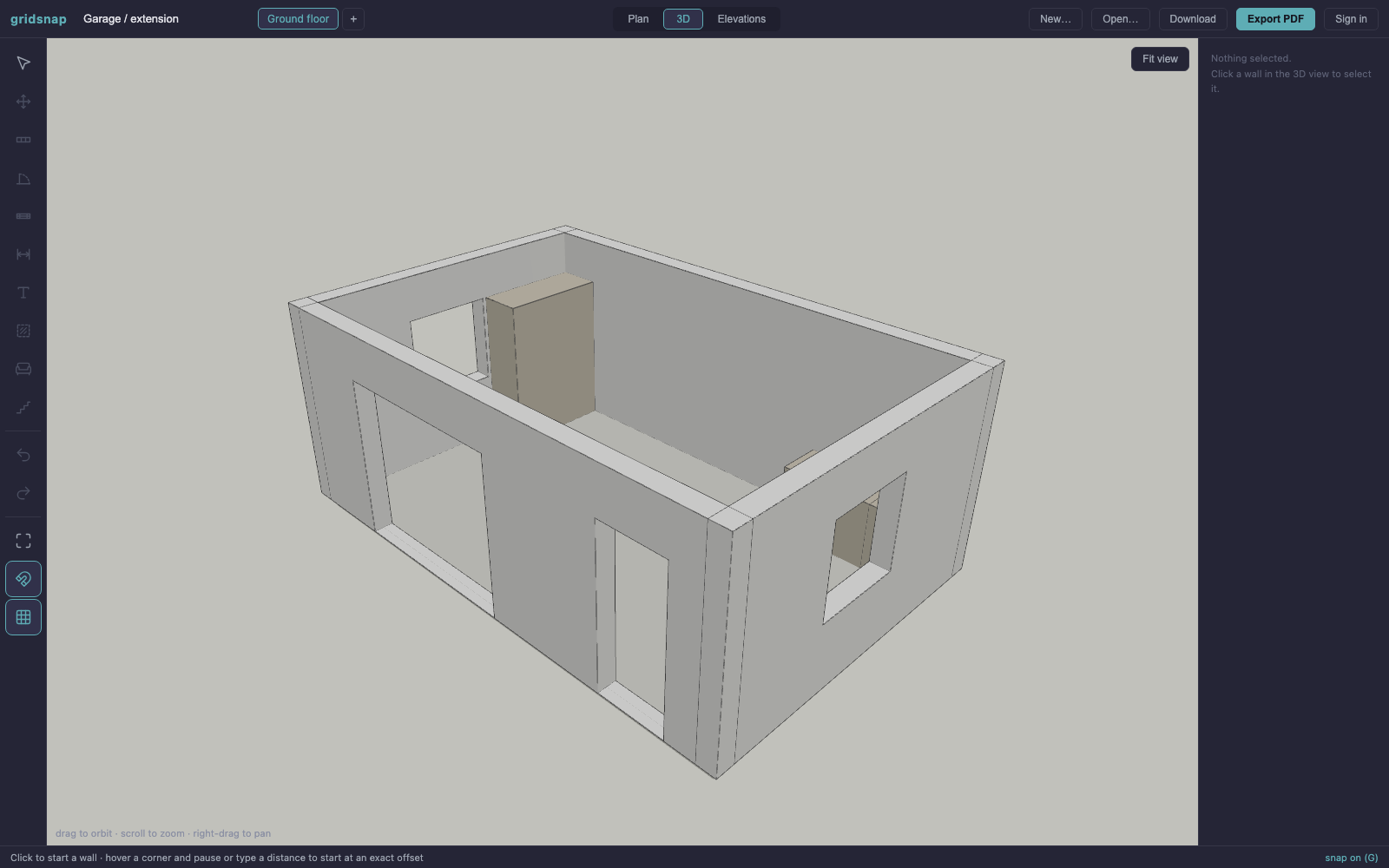

In 3D
Like every Gridsnap plan, this template is simultaneously a 3D model — walls with real door and window openings — and a set of automatically generated elevations for all four façades.
Make it yours
This is a starting point, not a fixed drawing: every wall, door, window and piece of furniture is editable. Stretch the envelope to your site, move partitions, and export a vector PDF or DXF when you're done. New to floor plans? Start with the step-by-step drawing guide.
Open the garage / extension template →
