Floor Plan Templates

Complete, dimensioned plans you can open in the editor and make yours

Every template is a finished, professionally drafted plan — real wall thicknesses, doors with clear swings, furnished rooms, full dimension chains. Open one in the editor and every element is yours to change. Free, no sign up.

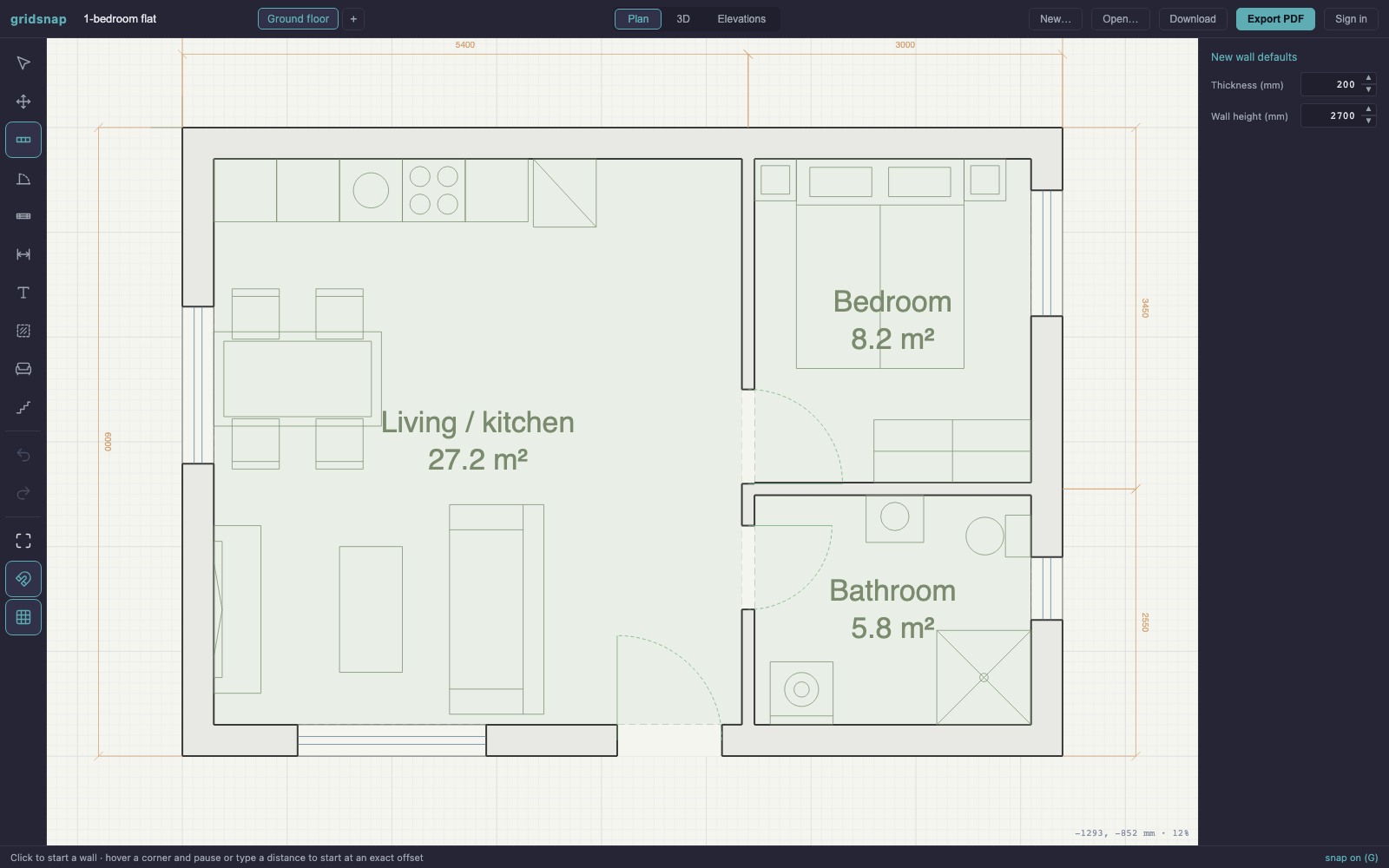

1-bedroom flat floor plan, 8.4 by 6 metres, with open living/kitchen, bedroom and bathroom, drawn with dimensions in the Gridsnap editor
8.4 × 6.0 m · ~40 m²

1-Bedroom Flat

A compact one-bedroom apartment with an open living/kitchen — around 40 m² net.

Open in Editor Details →

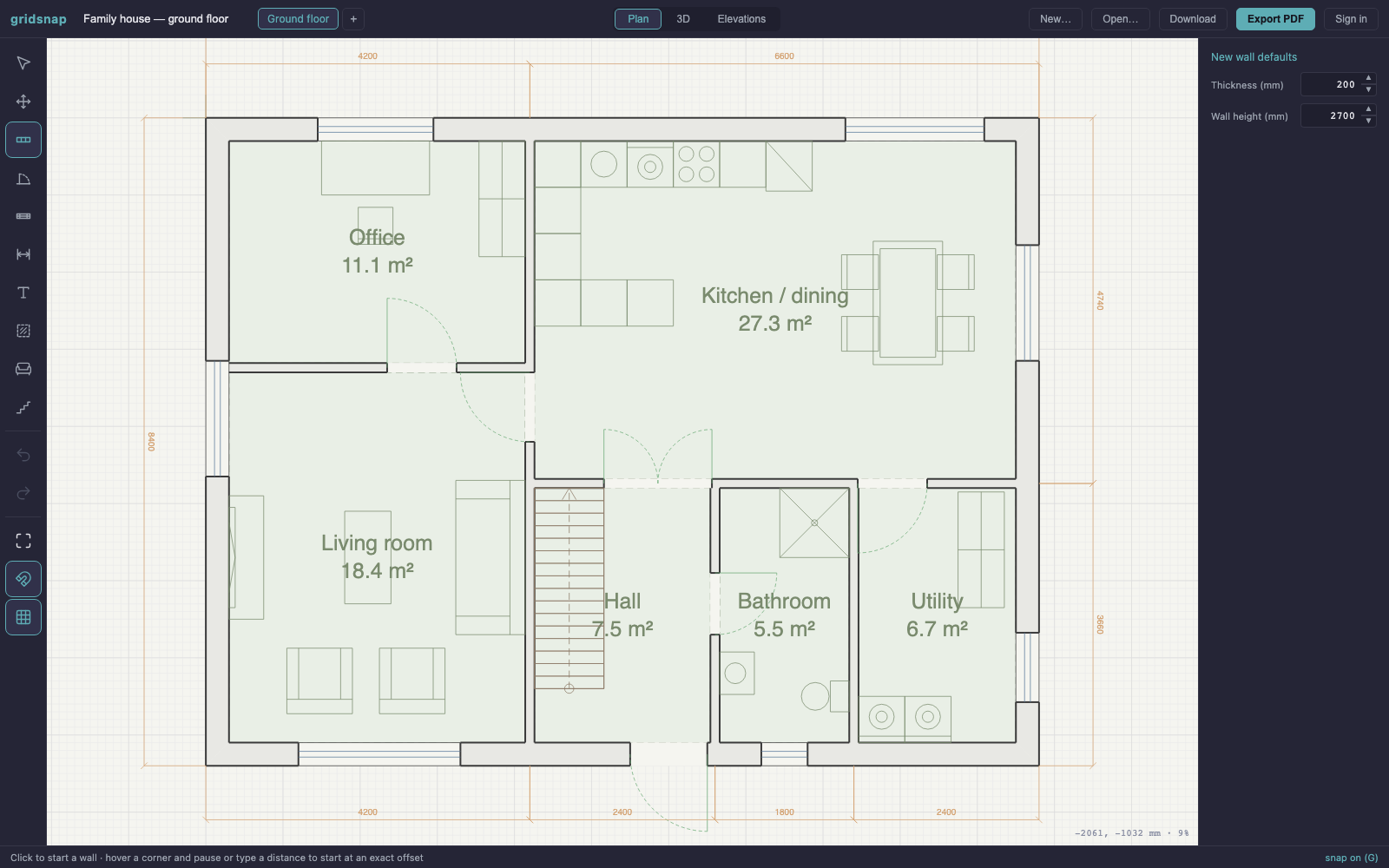

Family house ground floor plan, 10.8 by 8.4 metres, with kitchen/dining, living room, office, hall with staircase, bathroom and utility room
10.8 × 8.4 m · ~76 m²

Family House — Ground Floor

The ground floor of a two-storey family house: kitchen/dining, living room, office, and a staircase up — around 76 m² net.

Open in Editor Details →

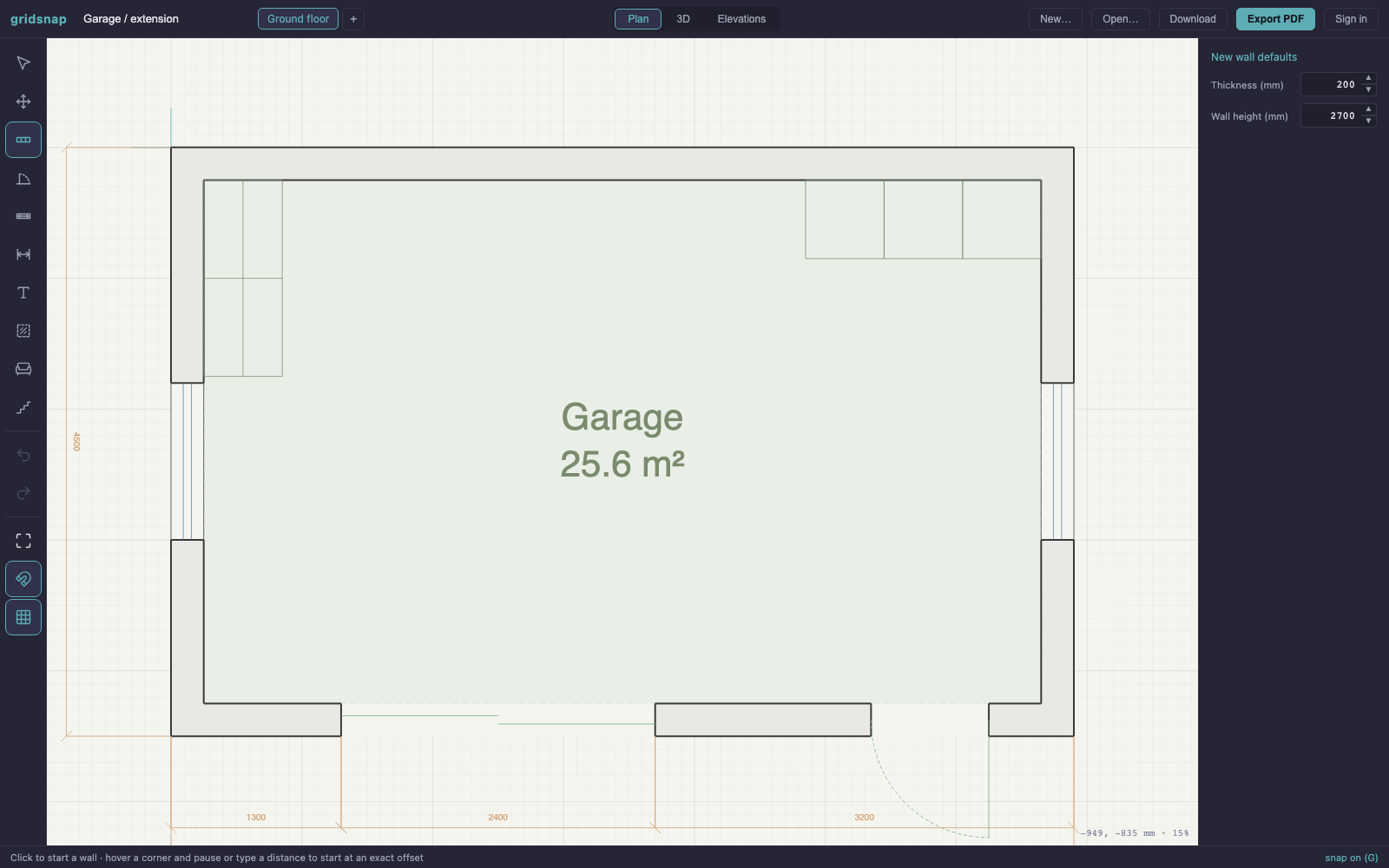

Garage floor plan, 6.9 by 4.5 metres, with vehicle door, side entrance, windows and storage cabinets, drawn with dimensions
6.9 × 4.5 m · ~26 m²

Garage / Extension

A single garage with a workbench and storage — around 26 m², sized for one car plus a workshop corner.

Open in Editor Details →

Or start from a blank grid

Draw your own plan from scratch — free, no account needed.

Open Gridsnap Editor
